Spoiler - Installation

INSTALLATION

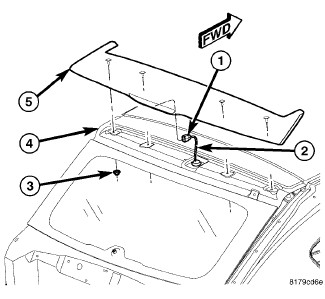

1. If equipped, connect satellite wire (2) connector (1).
2. Replace seal if necessary.
3. Connect CHMSL wire.
4. Wipe ends of liftgate with alcohol to clean surface for foam spacers.
5. Remove tape liners from foam spacers on ends of spoiler.
6. Place spoiler (5) onto vehicle (4).
7. Press center push pin into center hole in liftgate.
8. Install four spoiler nuts (3) onto spoiler studs.
9. Install spoiler plugs.
10. Press spoiler above spacers to adhere tape to liftgate.
11. Install liftgate upper molding .
