Outside Rearview Mirror Glass - Installation

INSTALLATION





1. Connect any electrical connectors, if equipped.

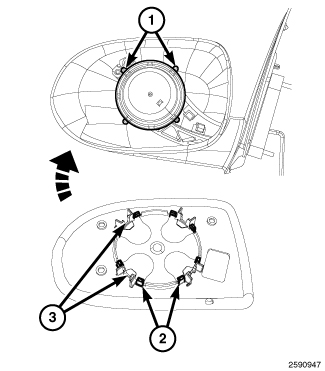

2. Position the mirror glass onto the mirror housing and line up the slots (3) in the glass assembly with the tabs (1) on the mirror actuator.
3. Seat the retaining tabs (2) fully.
