Outside Rearview Mirror - Removal
REMOVAL

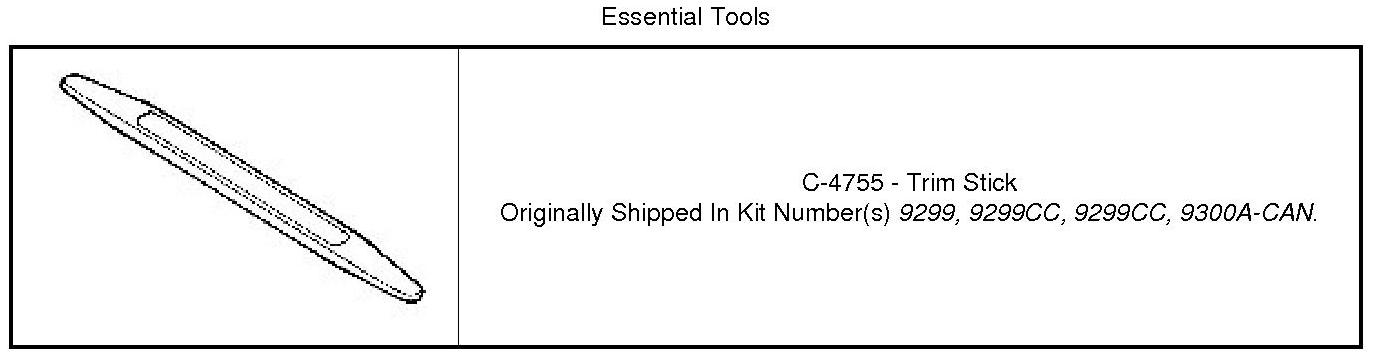

Special Tools:

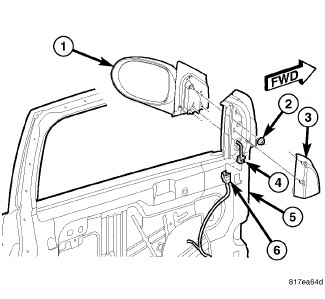

1. Using trim stick , pry up mirror flag cover (3).
2. Disconnect wire connector (4) from wire harness (6).
3. Remove nuts (2).
4. Remove mirror (1) from door (5).
REMOVAL
Special Tools:
1. Using trim stick , pry up mirror flag cover (3).
2. Disconnect wire connector (4) from wire harness (6).
3. Remove nuts (2).
4. Remove mirror (1) from door (5).
