Liftgate Door Lock Motor - Removal
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove liftgate trim panel.
3. Disconnect motor wire harness connector.

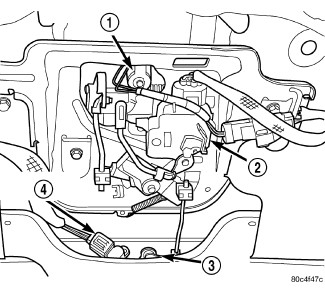

4. Remove liftgate lock motor (2) from liftgate by gently unsnapping.
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove liftgate trim panel.
3. Disconnect motor wire harness connector.
4. Remove liftgate lock motor (2) from liftgate by gently unsnapping.
