Shifter Housing - Installation






INSTALLATION

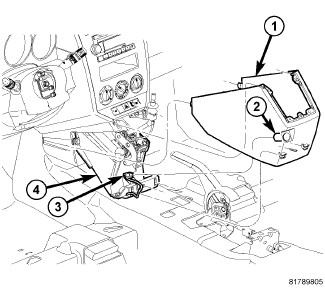

1. Connect center console housing wire connector (2) with instrument panel connector (3).
2. Place console housing (1) over shifter lever ensuring console tabs seat properly.

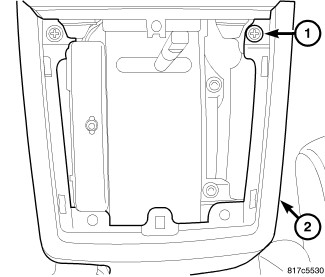

3. Install screws (1).
4. Replace shift bezel and knob. Shifter Bezel - Installation Shifter Bezel - Installation.
