Automatic






REMOVAL

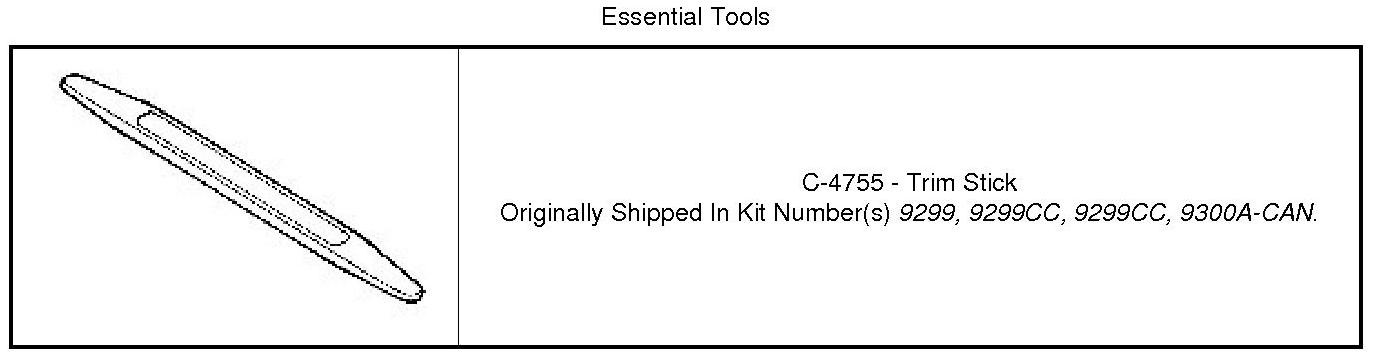

Special Tools:










1. Pull up on shifter knob (1) and remove.
2. Using trim stick or equivalent, pry up on bezel (2) and remove from shifter pod (3).
