A-Pillar Trim Panel - Installation

INSTALLATION

1. Insert A-Pillar trim bottom first ensuring trim has seated into clips.
2. Install screw.

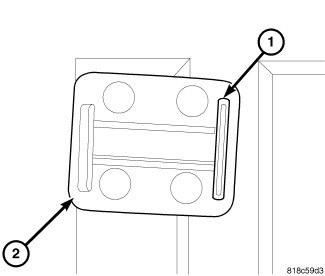

NOTE: It is very important to insert small tab of plug into small trim opening.





3. Insert plug bottom first (2) into trim opening.





4. Hinge A-pillar plug upward ensuring proper seat.
