Cowl Trim Panel - Removal

REMOVAL

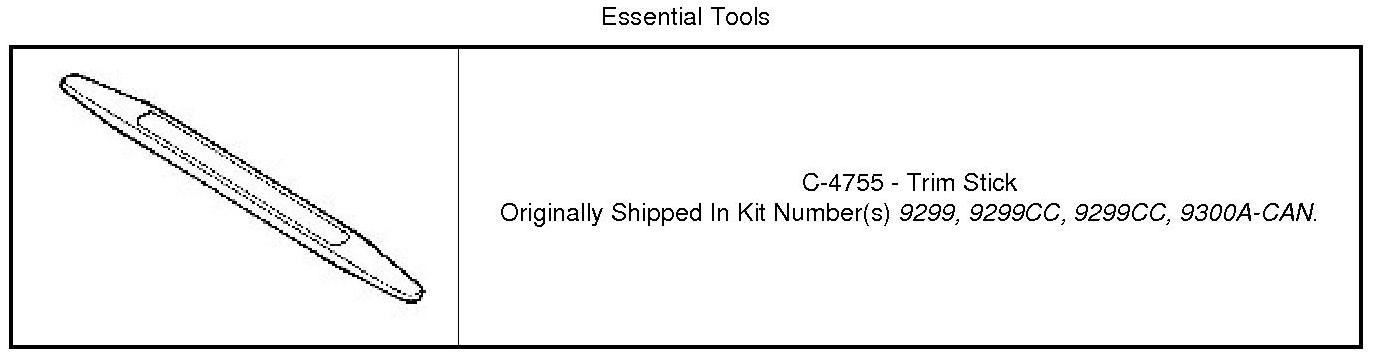

Special Tools:






NOTE: Left hand shown, right side similar.





1. Remove door sill scuff plate.Scuff Plate - Removal
2. Remove nut (3) securing trim (1) to dash.
3. Using trim stick , pry up on cowl trim and remove from vehicle.
