Liftgate Sill






REMOVAL

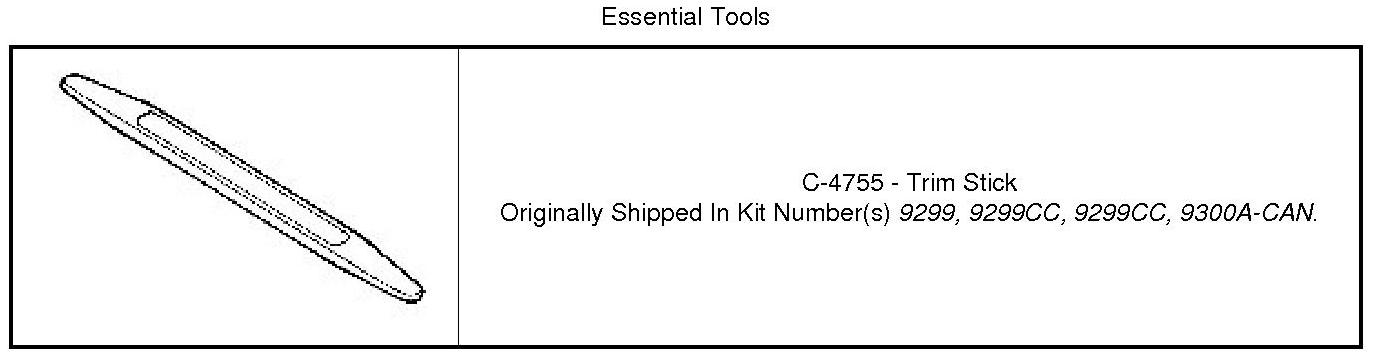

Special Tools:

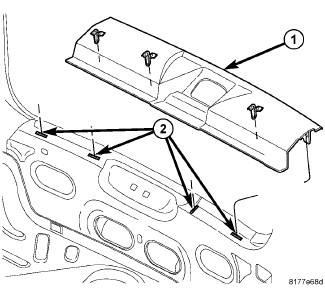

1. Using trim stick or equivalent, pry up on each scuff plate clip location hole (2).
2. Remove scuff plate (1).
