Front Fender - Removal

REMOVAL

1. Open and support the hood.
2. Remove upper radiator closure panel fasteners.
3. Raise and support the vehicle.
4. Remove splash shields as necessary. Splash Shield - Removal
5. Remove fascia. Front Bumper Fascia - Removal
6. Remove headlamp assembly. Front Lamp Unit - Removal
7. If servicing the right front fender, remove the antenna body and cable Service and Repair
8. Remove the fasteners that secures rear of the front fender to the side cowl panel.
9. Remove the two fasteners that secure the bottom of the front fender to the lower rocker panel.
10. Remove upper fender fasteners.

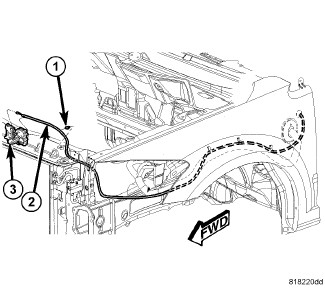

11. Before removing fender, unclip hood latch cable from fender.
12. Remove fender from vehicle and take to bench.
