Gas Prop - Removal

REMOVAL

1. Open the liftgate and support.

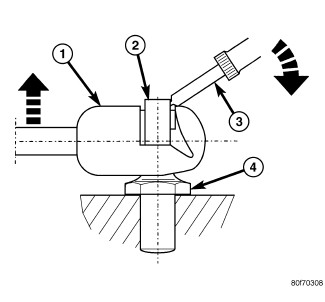

2. Using a small flat bladed tool, or equivalent, release the retaining clips while pulling the ball socket away from the ball stud.

NOTE: Lift the clips only enough to release the ball studs.

3. Remove the support cylinder.
