Latch - Removal






REMOVAL

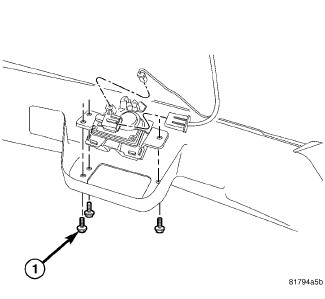

1. Remove three fasteners (1).
2. Disconnect wire connectors.
3. Disconnect cable from outer handle hole.
4. Disconnect cable from latch.
