Hinge - Installation

INSTALLATION

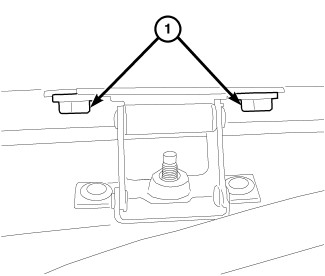

1. With the help of an assistant, align liftgate (1) with liftgate hinge (3).

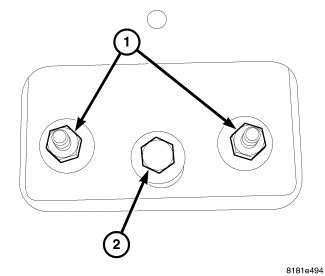

2. Carefully, pry down headliner and install fastener, washers and nuts.





3. Tighten nuts 20 Nm (15 ft. lbs).
4. Install gas props.





5. Connect liftgate harness (1).
