Exterior Handle Lamp Bar- Installation

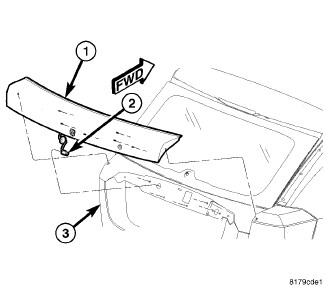

INSTALLATION





1. Connect wire connector (2).
2. Connect cable to light bar handle.
3. Align light bar studs through liftgate holes.
4. Install nuts to light bar studs.
5. Install liftgate lower trim panel.Liftgate Trim Panel - Installation
6. Install liftgate side moldings.
7. Install liftgate upper molding.
