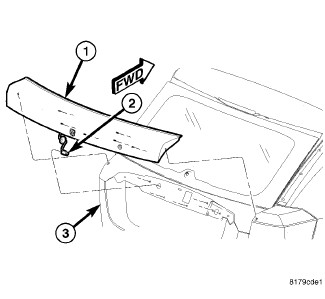

Exterior Handle Lamp Bar - Removal






REMOVAL





1. Remove liftgate upper molding.
2. Remove liftgate upper side molding.
3. Remove liftgate lower molding.Liftgate Trim Panel - Removal
4. Remove nuts from light bar studs.
5. Disconnect wire connector.
6. Disconnect cable from handle.
