Liftgate - Removal

REMOVAL





1. Open liftgate.
2. Disconnect washer hose.

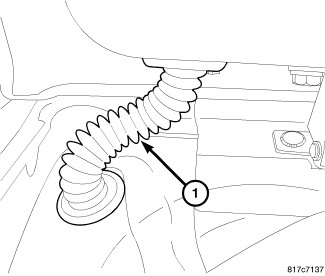

3. Disconnect liftgate harness (1).
4. Disconnect cable from handle.
5. With the help from an assistant, support liftgate and disconnect Prop rods.Gas Prop - Removal

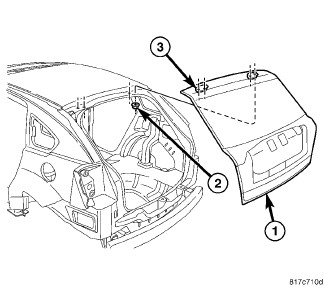

6. Remove fasteners (2) attaching liftgate (1) to liftgate hinge (3).
