Hood Release Cable - Installation

INSTALLATION

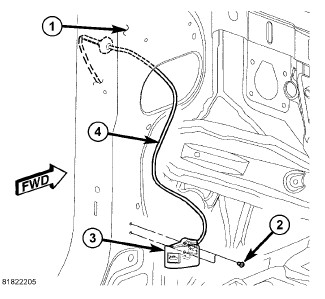

1. Install fasteners (2).
2. Install cable into hood release lever (3), and route cable (4) through grommet.
3. Remove splash shield.Splash Shield - Removal





4. Route cable along underneath splash shield and route toward radiator support.

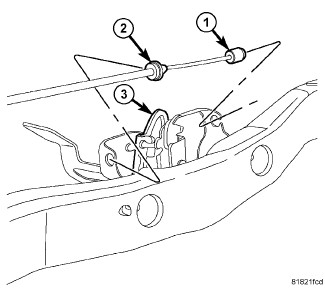

5. Insert cable (2) into latch (3) and route front of cable (1) into access hole.
