Hood Hinge - Installation






INSTALLATION

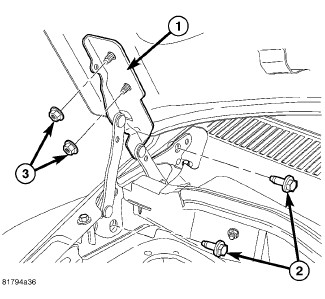

1. Align hood hinge with fastener holes.
2. Install fasteners (2) in to hinge holes.
3. Tighten nuts (3) to 20 Nm (15 ft.lbs.).
4. Install hood to hinge. Hood - Installation
