Fuel Fill Door - Installation

INSTALLATION

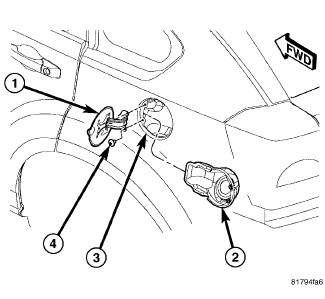

1. Install fuel filler housing (2).
2. Install fuel housing screws.
3. Align fuel door (1) with fuel door holes.
4. Fasten fuel door (1) to fender (3) with fasteners.
