Rear Door - Removal






REMOVAL

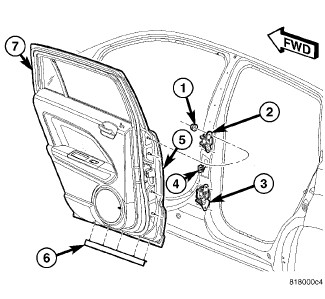

1. With the help of an assistant, carefully remove nuts (1) from door studs.
2. Remove door (7) from vehicle.
3. Disconnect door harness (4).
