Front Door Carrier Plate - Removal

REMOVAL

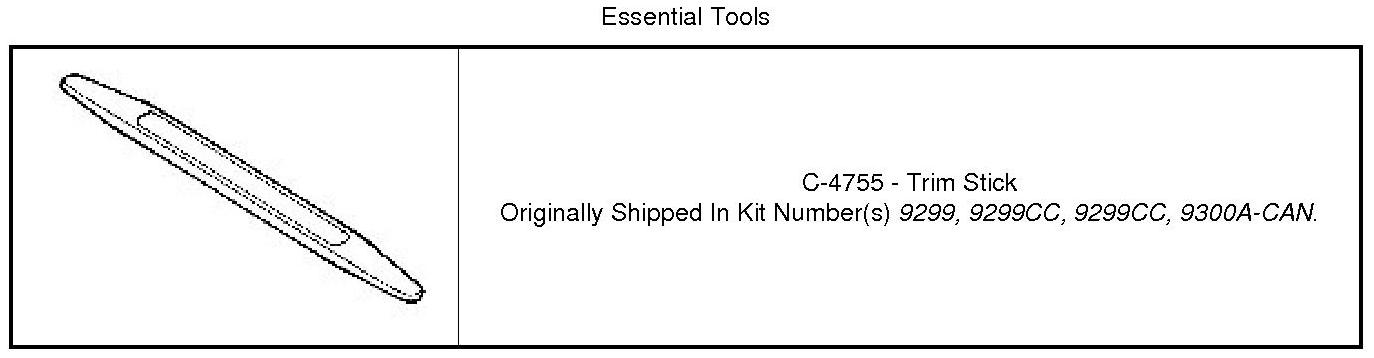

Special Tools:

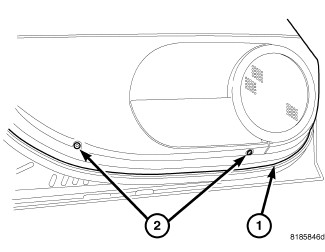

1. Loosen lower screws (2).

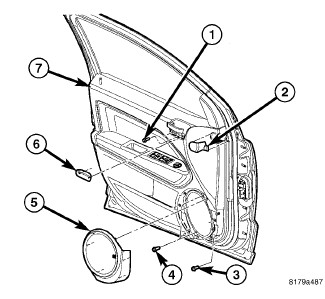

2. Remove speaker (5), Speaker - Removal.
3. Remove the trim screws (4) from the speaker opening.
4. Remove the trim cap (6) and the screw (1) at the inside handle.
5. Using a trim stick or equivalent, remove the outside mirror trim (2).

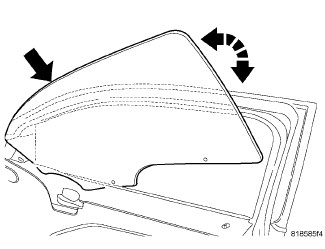

6. Remove the door glass, Front Door Glass - Removal.

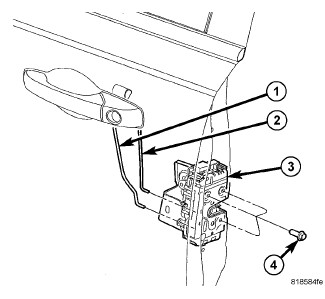

7. Disconnect the latch linkages (1 and 2).
8. Remove the latch screws (4).





9. Disconnect main harness connector.
10. Remove screws and separate harness from door frame.





11. Remove three upper bolts (1).

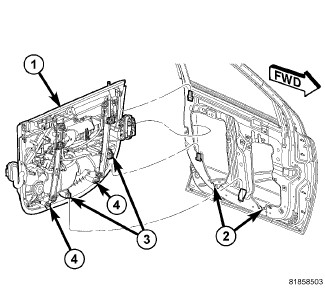

12. Lift the module (1) up off of the four trim hooks (3) and the lower regulator screws (4).
13. Pull the front of the trim module (1) out from the door and forward to remove the latch.
