Rear Bumper Fascia - Installation

INSTALLATION

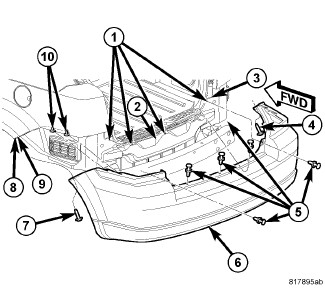

1. Raise fascia (6) and hang fascia onto push pins (10).
2. Install push pins (5) into push pin locations (1).
3. Install left (7) and right (4) screws into their respective locations.
4. Install splash shields.
