Front Bumper Reinforcement - Installation

INSTALLATION

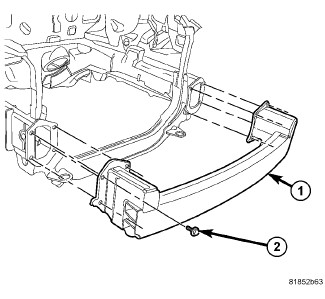

1. Install fasteners (2) and torque to 23 Nm (204 in. lbs.).





2. Connect wire connector (2) and install horn (1). Horn - Installation

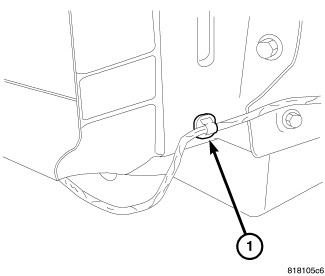

3. Install wiring harness push pin.

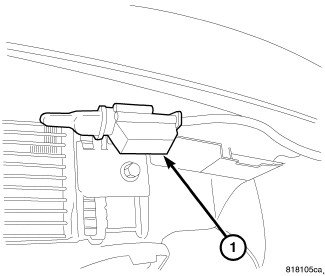

4. Install wire connector (1) to bumper reinforcement.
5. Install front fascia.Front Bumper Fascia - Installation
