Instrument Cluster Switch Pod - Installation

INSTALLATION

NOTE: There are different instrument panel accessory switch banks available based on the option content of the vehicle. Ensure the accessory switch bank being installed matches the vehicle options.

NOTE: Take the proper precautions to protect the front face of the accessory switch bank bezel from cosmetic damage while performing this procedure.

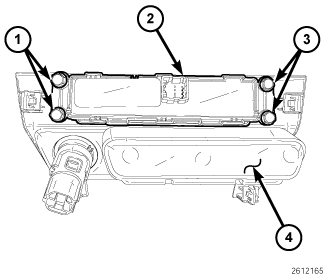

1. Position the accessory switch bank (2) onto the back of the bezel (4).
2. Install the four screws (1 and 3) that secure the accessory switch bank to the bezel.
3. Install the bezel onto the instrument panel.
4. Reconnect the negative battery cable.
5. Verify heated seat system operation.
