Vehicle Theft Security Siren - Removal - Export

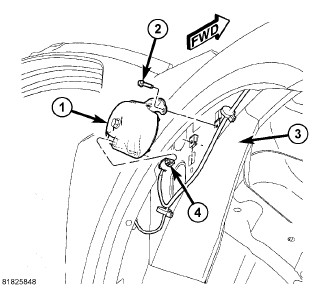

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the right front wheel well splash shield Splash Shield - Removal.
3. Disconnect the electrical connector (4).
4. Remove the siren retaining screws (2) and remove the siren (1) from the load form (3).
