Satellite Radio Antenna - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the rear quarter trim panel. Rear Quarter Trim Panel - Removal.
3. Lower the rear portion of the headliner as necessary to access the underside of the satellite antenna Service and Repair

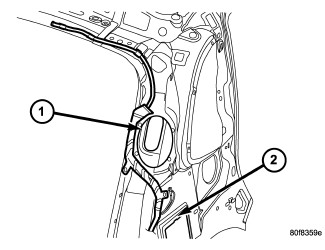

4. Detach the antenna cable (1) from the body harness. Disconnect wire harness connectors at each end of the cable.
