Antenna Mast - Removal - Export

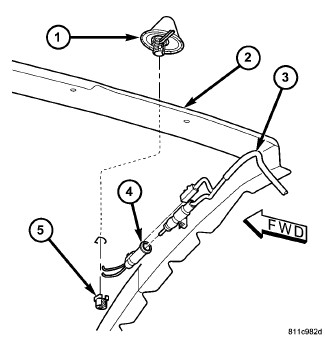

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Lower the headliner as necessary to access antenna mounting fastener Service and Repair
3. Disconnect antenna cable and electrical harness connector (4).
4. Remove the mounting fastener.
5. Remove antenna from roof panel.
