Navigation Antenna Mast - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel top cover Instrument Panel Pad - Removal.

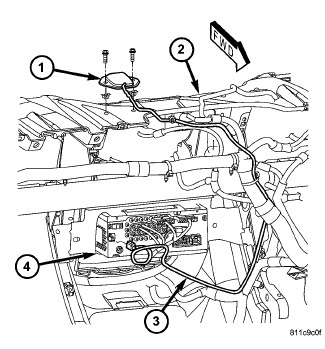

3. Remove the radio (4) Radio - Removal.
4. Remove the antenna (1) mounting fasteners
5. Remove antenna cable (3) from wire harness.
