Set Compass Variance As Follows:

  1. Using the Variance Settings Map, find your geographic location and note the zone number.

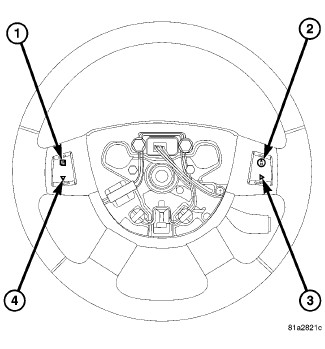

    Fig 1: EVIC Function Buttons
    GC0085977Courtesy of CHRYSLER GROUP, LLC
  2. Turn the ignition switch to the ON/RUN position. Press and release the MENU  push button (1) until "Personal Settings" is displayed.
  3. Press the STEP  push button (4) until "Compass Variance" is displayed.
  4. Momentarily depress and release the RESET  push button (3) to toggle through the zone numbers (1-15), until the zone number for your geographic location appears in the display.
    NOTE:

    The default for the compass variance from the factory is 8. During programming, the Zone value will wrap around from Zone 15 to Zone 1.

  5. Momentarily depress and release the C/T  push button (2) to enter the displayed zone number into the compass unit memory.
  6. Confirm that the correct directions are now indicated by the compass.
