Description - LHD

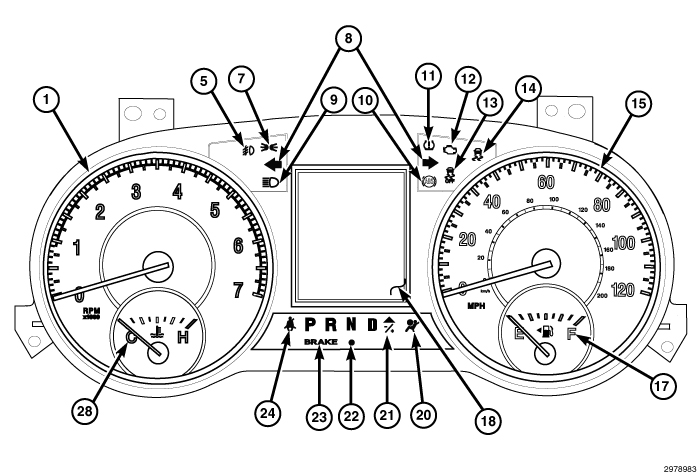

The Electronic Vehicle Information Center (EVIC) features a driver-interactive display (18). The display is located directly in the center of the instrument cluster between the tachometer (1) and the speedometer (15). The lower portion of the display shows the vehicle odometer related functions. These functions include Trip Odometer (ODO), Trip A and Trip B readouts. The EVIC push-button are used to scroll through the different functions. For additional information on the instrument cluster and related functions, refer to DESCRIPTION .
The EVIC system conveniently allows the driver to navigate through and select a variety of useful information by pressing the function buttons located on the steering wheel.
The EVIC displays information related to the following:
- Audio mode display
- Compass display
- Fuel saver indicator, Economizer (ECO) display
- Outside temperature display
- Personal Settings (customer programmable features)
- Park Assist System - If Equipped
- System Status
- Trip computer functions
- Tire Pressure Monitor System (TPM) - If Equipped
- Vehicle information warning message displays
The EVIC system is comprised of several different components. Those components are:
- Instrument Cluster, also known as the Cab Compartment Node (CCN)
- Steering Wheel Function Buttons
- Ambient Temperature Sensor
- Remote Compass Module (RCM) - Unless equipped with a Navigational Radio.
- Park Assist Module
- Controller Area Network (CAN) Data Bus
- Local Interface Network (LIN) Data Bus
The EVIC display is part of the Instrument Cluster assembly and is not serviced as a separate component. If the display is inoperative the complete Instrument Cluster assembly must be replaced. Refer to REMOVAL .
