Installation - LHD

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

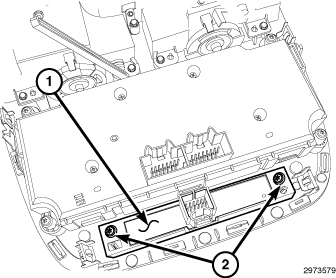

Fig 1: Instrument Panel Switch Pod & Two Screws

Courtesy of CHRYSLER GROUP, LLC

Position the instrument panel switch pod (1) to the back of the instrument panel center bezel.
Install and tighten the two screws (2) that secure the switch pod to the center bezel.
Connect the wire harness connector to the back of the switch pod.
Install the center bezel onto the instrument panel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION or BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
Connect the negative battery cable.
