Description - RHD
The Instrument Cluster has provisions for up to 25 indicators and houses either 3 or 4 analog gauges, for more information on gauges. Refer to GAUGE PACK, INSTRUMENT CLUSTER, DESCRIPTION . Some of the indicators are automatically configured when the instrument cluster is connected to the vehicle electrical system for compatibility with certain optional equipment or equipment required for regulatory purposes in certain markets. While each instrument cluster may have provisions for indicators to support every available option, the configurable indicators will not be functional in a vehicle that does not have the equipment that an indicator supports.

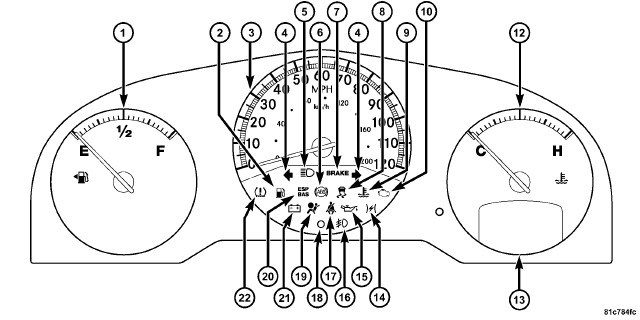

The instrument cluster includes provisions for the following indicators:
- Airbag Indicator (19)
- Ajar Indicators - textual message in odometer display (13) for doors and liftgate in vehicles without EVIC, or icon and text in the EVIC display (23) of vehicles with that option
- Antilock Brake System (ABS) Indicator (6)
- Brake Indicator (7) - text only for U.S. market, icon only for markets outside U.S.
- Change Oil Indicator - on all domestic market vehicles and only BUX market vehicles equipped with a 2.8L diesel engine and an optional diesel particulate filter a textual message in odometer display (13), or in the EVIC display (23) of vehicles with that option
- Charging Indicator (21)
- Cruise Indicator - text indicator in odometer display (13)
- Fuel Saver Indicator (ECO /ECO-on) (11 or 28) - textual message in odometer display or in EVIC if equipped.
- Electronic Stability Program (ESP)/Brake Assist System (BAS) Indicator (20)
- Electronic Throttle Control (ETC) Indicator (14)
- Engine Coolant Temperature Indicator (9)
- ESP OFF Indicator - textual message in odometer display (13)
- Front Fog Lamp Indicator (16)
- Gas Cap Indicator - textual message in odometer display (13) with gasoline engine only
- Gear Selector Indicator - text indicator in odometer display (13) with automatic transmission only
- High Beam Indicator (5)
- Low Coolant Indicator - textual message in odometer display (13) with diesel engine only
- Low Fuel Indicator (2)
- Low Oil Pressure Indicator (15)
- Malfunction Indicator Lamp (MIL) (10)
- No Bus Indicator - textual message in odometer display (13)
- No Fuse Indicator - textual message in odometer display (13)
- Rear Fog Lamp Indicator (24) - in markets where rear fog lamps are available only
- Seat Belt Indicator (17)
- Security Indicator (18)
- Tire Pressure Monitor (TPM) Indicator (22)
- Traction Control/Electronic Stability Program (ESP) Indicator (8)
- Turn Signal (Right and Left) Indicators (4)
- Wait-To-Start Indicator (25) - with diesel engine only
- Washer Fluid Indicator - textual message in odometer display (13), or in the EVIC display (23) of vehicles with that option
Each indicator, except those located within a Vacuum-Florescent Display (VFD) unit, is illuminated by a dedicated Light Emitting Diode (LED) that is soldered onto the instrument cluster's electronic circuit board. Dodge base cluster illumination is accomplished by several dimmable LED units, which illuminate each of the gauge dial faces for visibility when the exterior lighting is turned ON. These LED units are not available for service replacement and, if damaged or ineffective, the entire instrument cluster must be replaced. Dodge premium and Chrysler cluster illumination is accomplished by a dimmable electro-luminescent lamp, which illuminates each of the gauges for visibility when the exterior lighting is turned ON. The Dodge premium cluster lighting is white in color, while the Chrysler cluster lighting is blue-green in color. The electro-luminescent lamp units are not available for service replacement and, if damaged or inoperative, the entire instrument cluster must be replaced.
