Sleeve, Headrest, Stow-N-Go: Removal: Removal

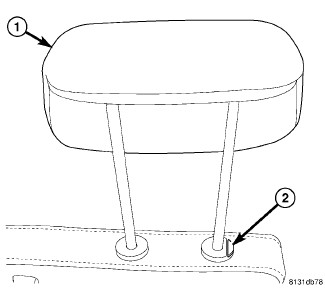

Fig 1: Headrest

Courtesy of CHRYSLER GROUP, LLC

1. Lift head restraint (1) to top of travel in seat back.
2. Depress lock button (2) on side of sleeve.
3. Pull head restraint upward out of seat back.

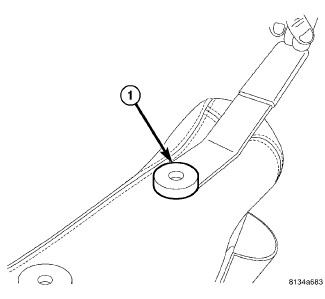

   Fig 2: Headrest Sleeve

   Courtesy of CHRYSLER GROUP, LLC
4. Using trim remover C-4829A or equivalent, disengage each headrest sleeve (1) by prying the sleeve away from the seat back.
5. Pull each headrest sleeve upward out of seat back.
