Seat Back, Stow-N-Go: Removal: Removal

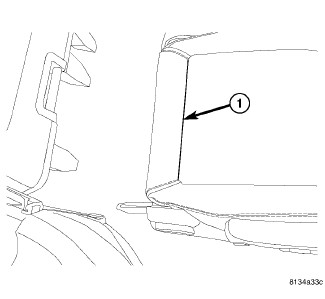

Fig 1: Second Row Seat Back Cover
GC0126202Courtesy of CHRYSLER GROUP, LLC
  1. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, carefully pry up seat back panel (1) to release the push-pin fasteners that secure the panel to the seat.
  2. Remove the seat back panel from the seat back.
