Cover, Seat Back, Stow-N-Go: Removal: Removal

NOTE:

On leather trimmed seats, the back cover can be removed from the back foam pad. On cloth trimmed seats, the seat back cover does not separate from the back foam pad

Fig 1: Velcro Hook And Loop

Courtesy of CHRYSLER GROUP, LLC

Remove the headrest and headrest sleeves. Refer to SLEEVE, HEADREST, FRONT, REMOVAL or SLEEVE, HEADREST, STOW-N-GO, REMOVAL or SLEEVE, HEADREST, REMOVAL .
Remove both armrests. Refer to ARMREST, FRONT, REMOVAL or ARMREST, STOW-N-GO, REMOVAL or ARMREST, REMOVAL .
Remove the seat back panel. Refer to SEAT BACK, FRONT, REMOVAL or SEAT BACK, STOW-N-GO, REMOVAL or SEAT BACK, QUAD BENCH, REMOVAL or SEAT BACK, BENCH, REMOVAL or SEAT BACK, STOW-N-GO, REMOVAL or SEAT BACK, REMOVAL .

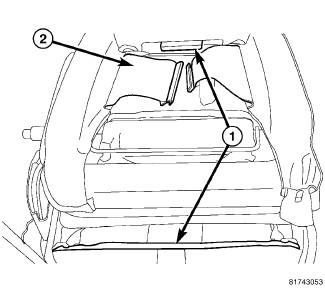

Disengage the seat back J-straps (1) and hook and loop strips (2)

Fig 2: Locking Strips
Courtesy of CHRYSLER GROUP, LLC
Lift seat back cover and foam straight up from the seat back frame.

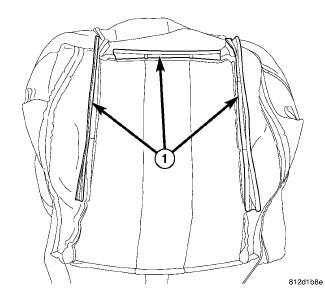

If required, separate the seat back cover from the foam by disengaging the locking strips (1) from the keepers.
