Handle, Front Recliner: Removal: Removal

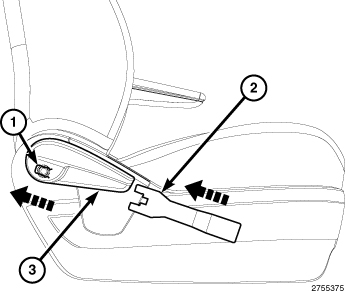

Fig 1: Front Recliner Handle & Clip
GC0139008Courtesy of CHRYSLER GROUP, LLC
  1. Using a door handle clip tool (2) or equivalent, release the clip (1) using the clip tool (2).
  2. Remove recliner handle (3).
