Body - Interior & Exterior: Hood: Removal: Removal

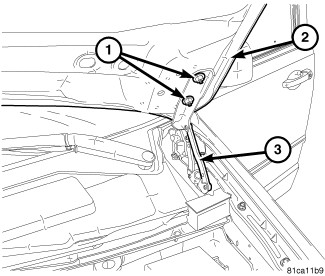

Fig 1: Removing/Installing Hood

Courtesy of CHRYSLER GROUP, LLC

1. Raise hood.
2. Using a grease pencil or equivalent, mark location of hood hinges (3) on hood (2) to aid installation.
3. Remove nuts (1) attaching hinges (3) to hood (2).
4. With the aid of a helper, remove hood (2) from vehicle.
