Turn Signal Lamp Bulb

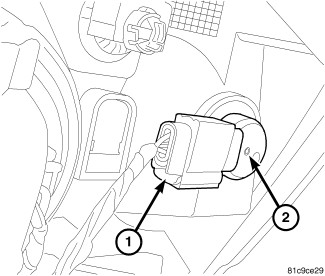

Fig 1: Turn Signal Lamp
GC0124702Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Release the lock tab (1) on the connector and remove the connector from the bulb.
  3. Twist the socket (2) counterclockwise and remove from the lamp assembly.
