Lamp/Igniter (Hid Only)

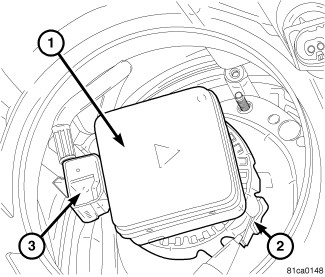

Fig 1: Lamp/Igniter & Connector
GC0124707Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate battery negative cable.
  2. Remove the inner splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
  3. Remove the boot from the rear of the lamp/igniter.
  4. Depress the lock tab on the lamp/igniter connector (3) and disconnect.
  5. Depress the lock tab on the lamp/igniter (2) and turn counter clockwise.
  6. Remove lamp/igniter (1) from the front lamp unit.
