Hid Ballast Module

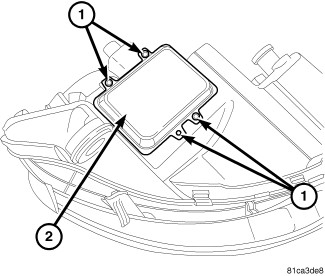

Fig 1: Hid Ballast Module
GC0124706Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove front lamp unit. Refer to UNIT, FRONT LAMP, REMOVAL .
  3. Remove the 3 screws (1) holding the ballast module to the front lamp unit and remove the ballast module (2).
