Headlamp Bulb

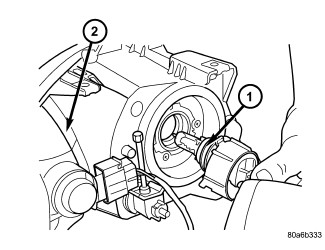

Fig 1: Headlamp - Dodge
GC0124700Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Raise the hood to access the rear of the headlamp unit
  3. Remove wiring connector from bulb.
  4. Rotate headlamp bulb counter-clockwise.
  5. Pull headlamp bulb and remove from headlamp unit.
