Bulb - Position Lamp
NOTE:
The following procedure applies only to vehicles manufactured for export markets. Vehicles manufactured for domestic markets do not have a position lamp bulb, socket or wiring provided in the front lamp unit.
- Disconnect and isolate the battery negative cable.
- Remove the front lamp unit from the vehicle.

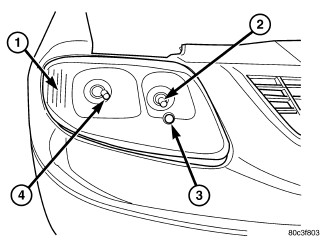

- Firmly grasp the position lamp bulb (3) socket and rotate it counterclockwise about 30 degrees to unlock it.
- Pull the socket and bulb straight out from the keyed opening in the housing.
- Pull the base of the bulb straight out of the socket.
