Fog Lamp Alignment
NOTE:
A properly aimed front fog lamp will project a pattern on the alignment screen 100 millimeters (4 inches) below the fog lamp centerline and straight ahead of the lamp for domestic market vehicles, or to 203 millimeters (8 inches) below the fog lamp centerline and straight ahead of the lamp for export market vehicles.
- Turn the fog lamps ON.

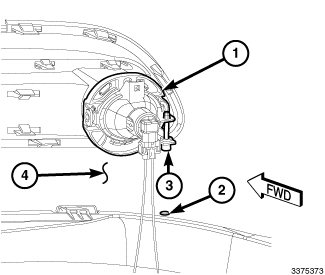

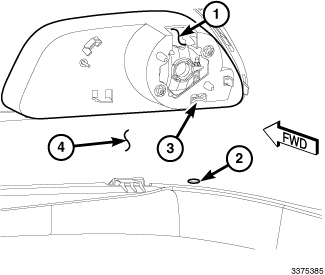

- Insert a screwdriver through the clearance hole (1) in the underside of the front fascia (4) below each fog lamp (1) to rotate the vertical adjustment screw (3) on each lamp to adjust the beam height as required.
