Tail Lamp
- Disconnect and isolate the battery negative cable.
- Raise the liftgate.

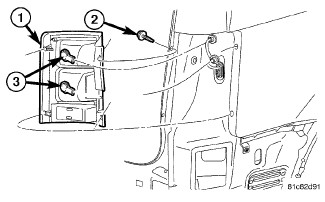

- Remove the two retaining screws (2).
- Insert a trim stick or equivalent to gently pry the lamp unit away from the body and rotate the lamp (1) away from the vehicle body to disengage pin from the grommet in the quarter panel opening.
- Disconnect the two wiring harness connectors from tail lamp assembly (3).
