Cover, Seat Back, Third Row: Removal: Removal

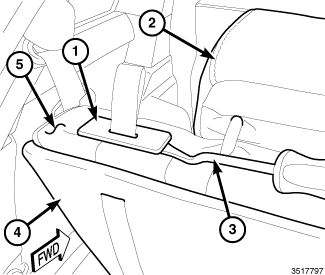

Fig 1: Headrest, Seat Back Panel, Trim Panel Removal Tool, Seat Back Release Strap Bezel & Seat Back

Courtesy of CHRYSLER LLC

1. Remove seat bottom cushion and cover assembly. Refer to COVER, SEAT CUSHION, REMOVAL  or COVER, SEAT CUSHION, SECOND ROW, REMOVAL  or COVER, SEAT CUSHION, THIRD ROW, REMOVAL .
2. Remove the headrest (2) from the seat being serviced. Refer to HEADREST, REMOVAL  or HEADREST, SECOND ROW, REMOVAL  or HEADREST, THIRD ROW, REMOVAL .
3. Remove the seat back panel (4) from the seat being serviced. Refer to PANEL, SEAT BACK, FRONT, REMOVAL  or PANEL, SEAT BACK, SECOND ROW, REMOVAL  or PANEL, SEAT BACK, THIRD ROW, REMOVAL .
4. Using a trim panel removal tool (3) or equivalent, remove the seat back release strap bezel (1) from the seat back (5).

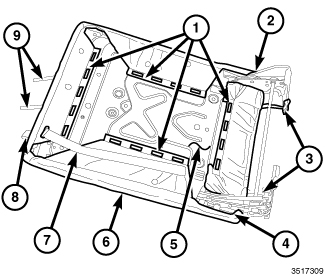

   Fig 2: Two Elastic Straps, Seat Back Frame, Seat Cover Retaining Tabs & J-Clips

   Courtesy of CHRYSLER LLC
5. Remove the seat back being serviced and place it on a workbench. Refer to SEAT BACK, SECOND ROW, REMOVAL  or SEAT BACK, THIRD ROW, REMOVAL .
6. Disengage the two elastic straps (3) from the bottom of the seat back frame (5).
7. Disengage the seat cover retaining tabs (1) from the seat back frame.
8. Disengage the J-clips (2 and 4) that secure the seat back cover to the seat back frame.
9. Route the pull strap (7) and release strap (8) out of the seat back cover.
10. Remove the seat back cushion and cover from the seat back frame and headrest rods (9).

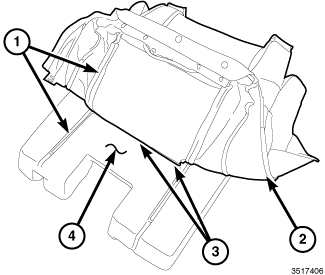

    Fig 3: Hook And Loop, Seat Back Cover, Seat Back Cushion, Hog Rings

    Courtesy of CHRYSLER LLC
11. Disengage the hook and loop (1) that secures the seat back cover (2) to the seat back cushion (4).
12. Cut and discard the hog rings (3) that secure the seat back cover to the seat back cushion and remove the cover.
