Prop, Gas, Liftgate: Removal: Removal

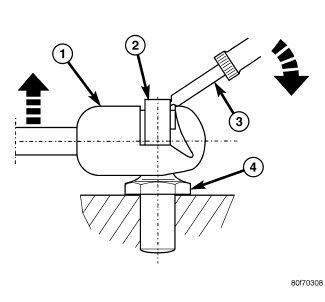

Fig 1: Support Cylinder Removal
GC0103344Courtesy of CHRYSLER LLC
  1. Open liftgate.
  2. Using a small flat bladed tool or equivalent, release the retaining clips while pulling the ball socket away from the ball stud.

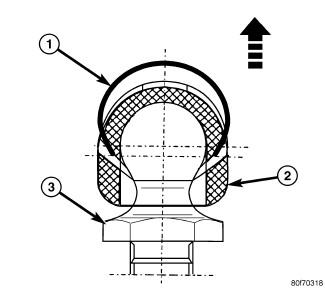

    Fig 2: Identifying Support Cylinder Retaining Clip
    GC0103345Courtesy of CHRYSLER LLC
  3. Remove the gas prop-rod lock caps.
  4. Remove the support cylinder.
