Panel, Seat Back, Third Row: Removal: Removal

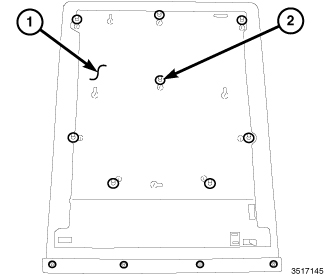

Fig 1: Seat Back Panel & 12 Plastic Push-Pin Retainers

Courtesy of CHRYSLER LLC

The seat back panel (1) is retained by 12 plastic push-pin retainers (2).

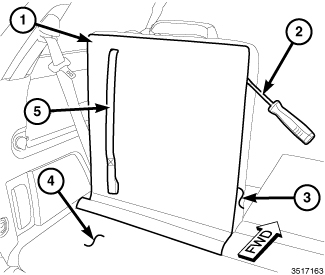

Fig 2: Trim Panel Removal Tool, Seat Back Panel & Seat Back, Rear Cargo Tray
Courtesy of CHRYSLER LLC

CAUTION:
Use care when removing the push-pin retainers from the seat back frame. Failure to follow these instructions may result in damage to the seat back panel.
Using a trim panel removal tool (2) or equivalent, carefully disengage the 12 push-pin retainers (see previous illustration) that secure the seat back panel (1) to the seat back (3) and the rear cargo tray (4).
Route the pull strap (5) out of the seat back panel and remove the panel.
