Removal

REMOVAL

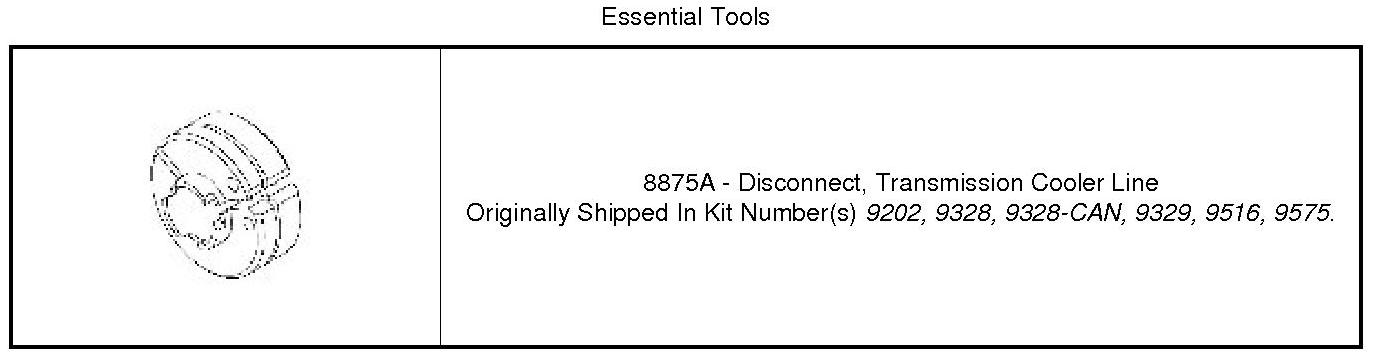

Special Tools:










1. On models equipped with A/C, refer to the A/C Condenser removal procedures. A/C Condenser - Removal
2. On non A/C equipped models, lift the vehicle and remove the lower closeout panel.

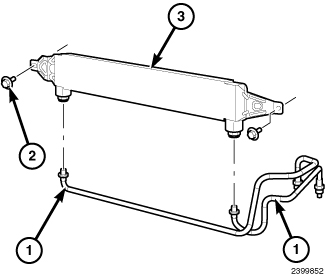

3. Using Tool disconnect the transmission cooler lines (1) from the transmission oil cooler (3). Service and Repair
4. Remove the transmission oil cooler mounting bolts (2).
5. Remove the transmission oil cooler (3).
