Satellite Radio Antenna - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the rear quarter trim panel. Quarter Trim Panel - Removal.
3. Lower the rear portion of the headliner as necessary to access the underside of the satellite antenna Headliner - Removal.

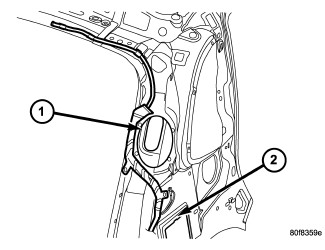

4. Detach the antenna cable (1) from the body harness. Disconnect wire harness connectors at each end of the cable.
