LAMP, Fog: Removal: Lamp
Courtesy of CHRYSLER LLC
- Disconnect and isolate the battery negative cable.
- Raise and support the vehicle.
- Remove the front wheel and tire on the same side of the vehicle as the fog lamp being serviced. Refer to Removal
.
- Remove the three screws (1) that secure the outboard side of the front wheel house splash shield (4) to the front fascia (2).
- Remove the push pin fastener (3) that secures the inboard side of the splash shield to the front end sheet metal.
- Remove the two push pin fasteners that secure the forward edge of the splash shield to the front fascia closure panel.
- Fold the front of the splash shield rearward far enough to access the back of the front fascia.
Courtesy of CHRYSLER LLC

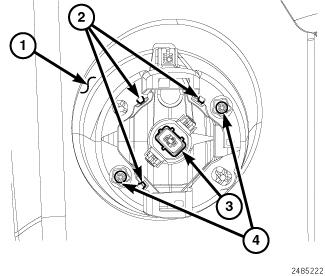

- Disconnect the engine compartment wire harness connector from the front fog lamp bulb connector receptacle (3).
- Remove the two screws (4) that secure the lamp bracket to the back of the fog lamp seat (1) in the front fascia.
- Disengage the three latch features (2) of the fog lamp bracket from the opening on the back of the seat and push the fog lamp forward far enough so the latch features are clear of the opening.
- From the face of the front fascia, remove the fog lamp and bracket from the seat as a unit.
